Gold Melting Furnace Guide: Electric vs. Induction vs. Torch
Quick answer
For repeatable small jewelry batches, an electric resistance gold melting furnace offers a useful balance of price, simple PID control, and benchtop capacity. A torch is often more efficient for very small quantities and occasional work. Induction becomes attractive when fast cycles, throughput, and process control justify higher equipment and infrastructure costs.
Choose by alloy, typical batch—not maximum batch—electrical supply, crucible strategy, and the next casting step. Melting gold does not refine it, and a melting furnace alone does not provide vacuum casting, centrifugal casting, mold burnout, assay, or fume control.
Melting is not refining
Melting turns solid metal into liquid. It can combine a known charge and make an ingot, but it does not automatically remove base metals, recover gold from ore, or prove purity. Refining changes composition through chemical, electrolytic, cupellation, or other specialized processes. Assay determines composition.
This distinction matters because buyers sometimes expect a “gold smelter” to convert electronic scrap or plated material into pure gold. Heating unknown scrap can create dangerous fumes and a contaminated alloy without recovering value. Use a qualified refiner for unidentified or chemically complex feedstock.
Three ways to melt gold
| Method | Best fit | Strengths | Limits |
|---|---|---|---|
| Torch and melting dish | Tiny, occasional batches | Low equipment cost, quick for small mass, direct visual control | Operator-sensitive; localized heating; open flame; limited batch size |
| Electric resistance furnace | Repeatable small and medium batches | PID set point, enclosed crucible chamber, accessible price | Heat-up time; crucible consumables; substantial circuit load at higher wattage |
| Induction furnace | Frequent production and fast cycles | Rapid heating, strong process potential, no heating element around the chamber | Higher cost and complexity; power/cooling requirements; coil and crucible compatibility |
“Electric” can describe resistance or induction, so ask which technology a listing uses. ToAuto’s TGF, TRF, and TAF models discussed here are resistance furnaces.
How to size a gold furnace
Use the normal batch, not the rare maximum
If most jobs are 100–500 g, a 1 kg crucible may be easier to handle and more responsive than a much larger crucible. If jobs regularly exceed that range, the 3 kg option can reduce split heats. A 5 kg furnace makes sense only when the workflow, security, lifting, mold, and downstream process genuinely support that mass.
Never fill to the rim. “3 kg” is a nominal capacity, not a recommended working fill for every shape, alloy, or pour.
Identify the alloy
Pure gold and 10K, 14K, 18K, white, rose, and dental alloys do not behave identically. Silver, copper, palladium, nickel, zinc, and other additions change the melting range, oxidation behavior, fume hazards, and suitable crucible or flux practice. Use the alloy supplier’s data and keep traceable charge records.
Plan contamination control
Use dedicated, labeled crucibles when color or karat integrity matters. Sweeps, filings, polishing debris, soldered returns, and unknown scrap should not be treated as clean casting grain. Weigh inputs and outputs under an appropriate precious-metal control procedure.
Verify the complete casting chain
The furnace must deliver the amount and fluidity needed by the ingot mold, investment mold, vacuum machine, or centrifugal caster. Confirm transfer distance, tong control, mold compatibility, and timing before heating valuable metal.

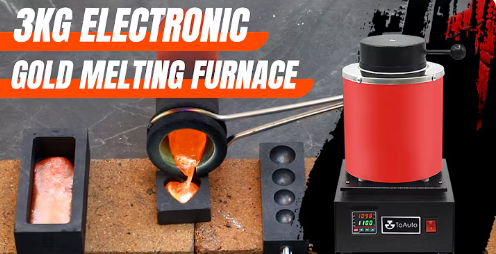

Choosing among ToAuto gold furnaces
| Model | Best-fit use | Verified facts | Buying caution |
|---|---|---|---|
| TGF3000 | Budget-oriented 3 kg-positioned batches | 1,400 W, PID, 1,100°C maximum | Slower than 1,800 W families; verify alloy needs |
| TGF3000-V1.1 | Shops alternating small and medium batches | 1 kg and 3 kg crucibles, PID; official page lists gold | Confirm revision-specific power and temperature |
| TRF3000 family | Faster small/medium precious-metal work | 1,800 W, 1 kg and 3 kg positioning | Check exact model label, voltage, circuit, and rating |
| TRF5000 | Regular medium batches | 1,800 W, 5 kg positioning | Obtain a complete current specification for the exact revision |
For a jewelry studio with varied jobs, dual 1 kg and 3 kg crucibles are more useful than a single oversized capacity. For infrequent gram-scale work, a furnace may be less practical than a suitable torch workflow.
What supplied owner reviews reveal
The 607-review ToAuto dataset is not a controlled test, but it identifies questions a buyer should resolve. Crucible condition and life were the most common theme. Temperature or failure-to-melt language, electrical complaints, instructions, controllers/sensors, and shipping damage also recurred.
Turn those themes into an acceptance test:
- Confirm the box contents against the SKU.
- Inspect for shipping damage before energizing.
- Photograph the nameplate and crucible condition.
- Verify voltage and circuit suitability.
- Run the manual’s commissioning procedure without valuable metal.
- Test first with a documented conservative charge.
- Record set point, time, and any controller or sensor behavior.
Do not make the first trial a full crucible of high-value alloy.
Safe setup for precious-metal work
High material value does not reduce physical risk. Keep the furnace, charge, tools, and mold dry. Use a stable noncombustible surface and a clear, short pour path. Provide ventilation based on the alloy and flux. Wear hazard-appropriate face, eye, body, hand, and foot protection; configure clothing so molten metal cannot become trapped.
NIOSH notes that radiant heat, protective clothing, exertion, humidity, and limited airflow can contribute to heat stress. Plan work/rest and hydration without compromising splash protection.
Security and accounting matter too. Establish access control, weighing, lot identification, spill recovery, and reconciliation before processing precious metal.
Frequently asked questions
What size gold melting furnace do I need?
Choose for the batch you melt most often, with freeboard and safe tong control. A 1 kg crucible suits many small jewelry batches; 3 kg adds flexibility; 5 kg is for workflows that truly handle larger charges.
Is electric or propane better for gold?
Electric resistance offers convenient PID control and no combustion burner. Propane can provide high heat and independence from a high-load circuit but adds fuel, burner, combustion, and open-flame considerations. The right choice depends on batch, location, ventilation, and local rules.
Does melting gold make it pure?
No. Melting changes physical state and may combine the charge. Purity requires known feedstock, assay, and an appropriate refining process.
Can I melt electronic scrap in a gold furnace?
Do not place unidentified electronic scrap, plated parts, batteries, or assemblies into a small melting furnace. They can contain hazardous coatings and metals, and melting does not selectively recover pure gold.
How long does a gold melt take?
It depends on alloy, mass, shape, starting temperature, crucible, furnace revision, voltage, fill, and endpoint. Publish only a documented test or a clearly labeled manufacturer estimate.
Should gold and silver share a crucible?
Use dedicated crucibles when composition, color, or traceability matters. Even a small residue can alter a later batch.
Verdict
A gold melt furnace should fit the whole production chain, not just reach a temperature. For many small shops, a dual-crucible resistance model is the practical middle ground. A torch remains sensible for tiny occasional melts, while induction serves higher-throughput operations. Whatever the method, known alloy, dry handling, ventilation, crucible control, and traceability determine whether the result is repeatable.
